Crushco
Coal Crushers

A range of Coal Crushers, built to perform in the challenging conditions of opencast coal mining.

ROBUST FEATURES FOR MAXIMUM RELIABILITY

We have applied 18 years of Crusher experience to design & manufacture a range of robust heavy duty COAL CRUSHERS,
suited for the challenging opencast conditions.

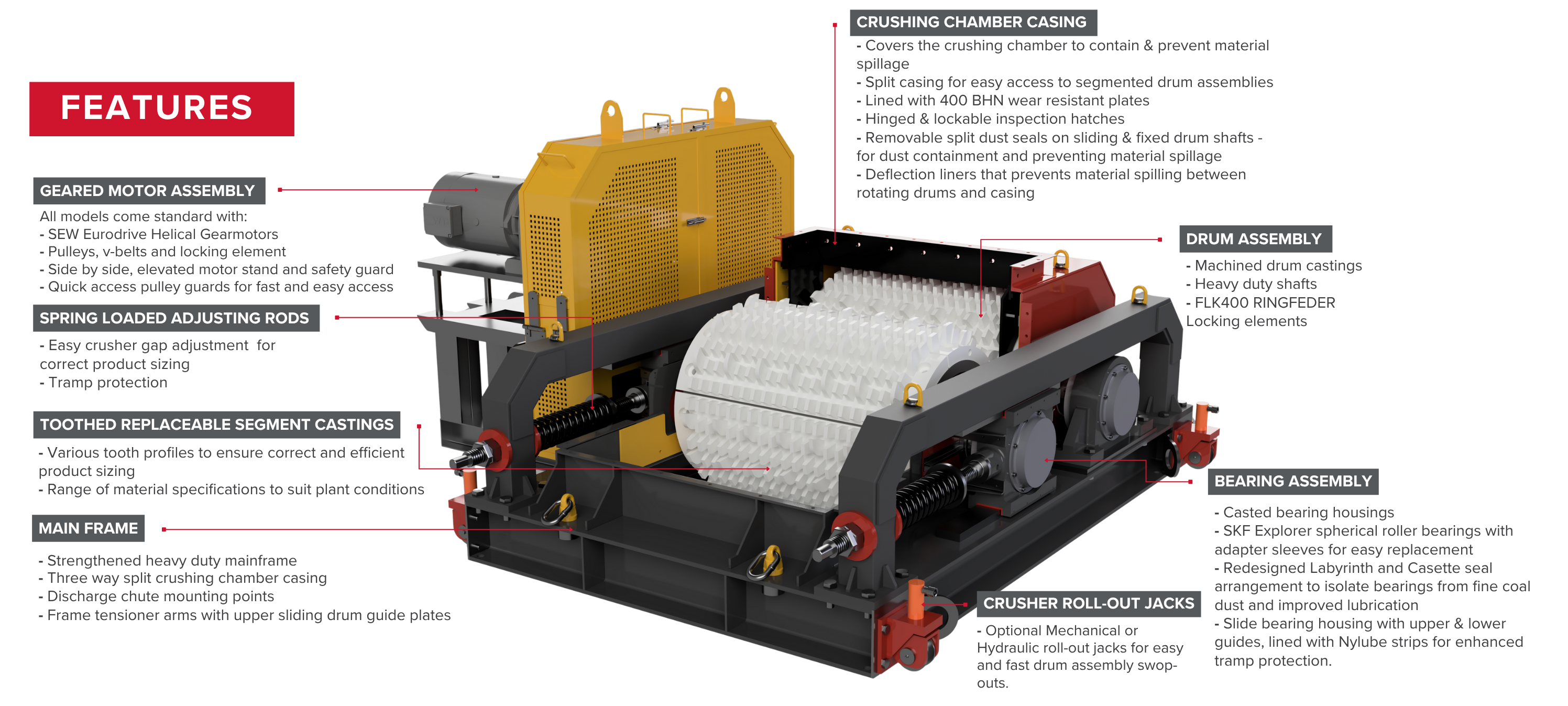

STANDOUT FEATURES

Efficient crushing & sizing
Reduced fines production
Robust, heavy duty components
Best-in industry supporting components

SKF Explorer spherical roller bearings

 SKF Automatic lubrication system

 SEW EURODRIVE helical gear motors

Fenner Transmission Belts, Pulleys & Locking elements

 Range of segment tooth-profiles for accurate product sizing
Sealed crushing chamber for dust isolation
Comes standard with roll-out jacks for fast drum swop-out







MAINTENANCE

• Replaceable wear resistant segments
• Split crushing chamber casing and inspection hatches
  for easy access to segments
• Comes standard with roll-out jacks for fast drum
  swop-out
• Segment bolt holes can fit socket impact drive for
  easy bolt tightening
• Labyrinth and V-seal arrangement to
  keep bearings isolated
• Replaceable split shaft seals to prevent material spillage
  between casing and bearing assemblies
• Adjusting rods for easy crusher gap changes

MACHINE MODELS

N

CC-1200HD - 1200mm Wide Crushing Face

N

CC-900HD - 900mm Wide Crushing Face

N

CC-600SD - 600mm Wide Crushing Face

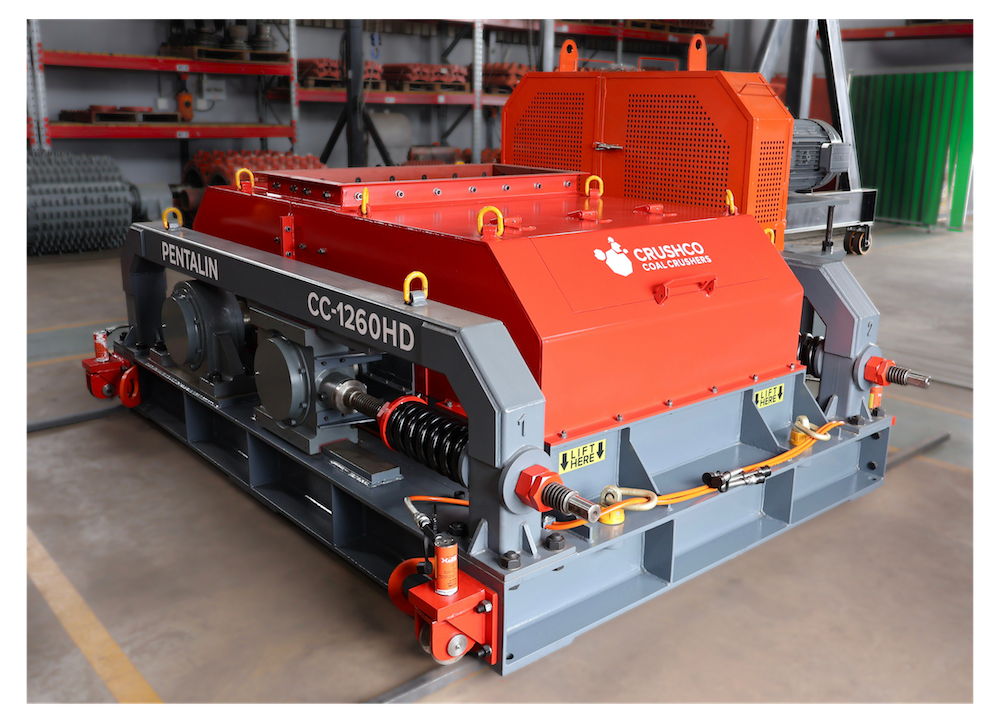

CRUSHCO COAL CRUSHER 1200HD

CRUSHCO COAL CRUSHER 900HD

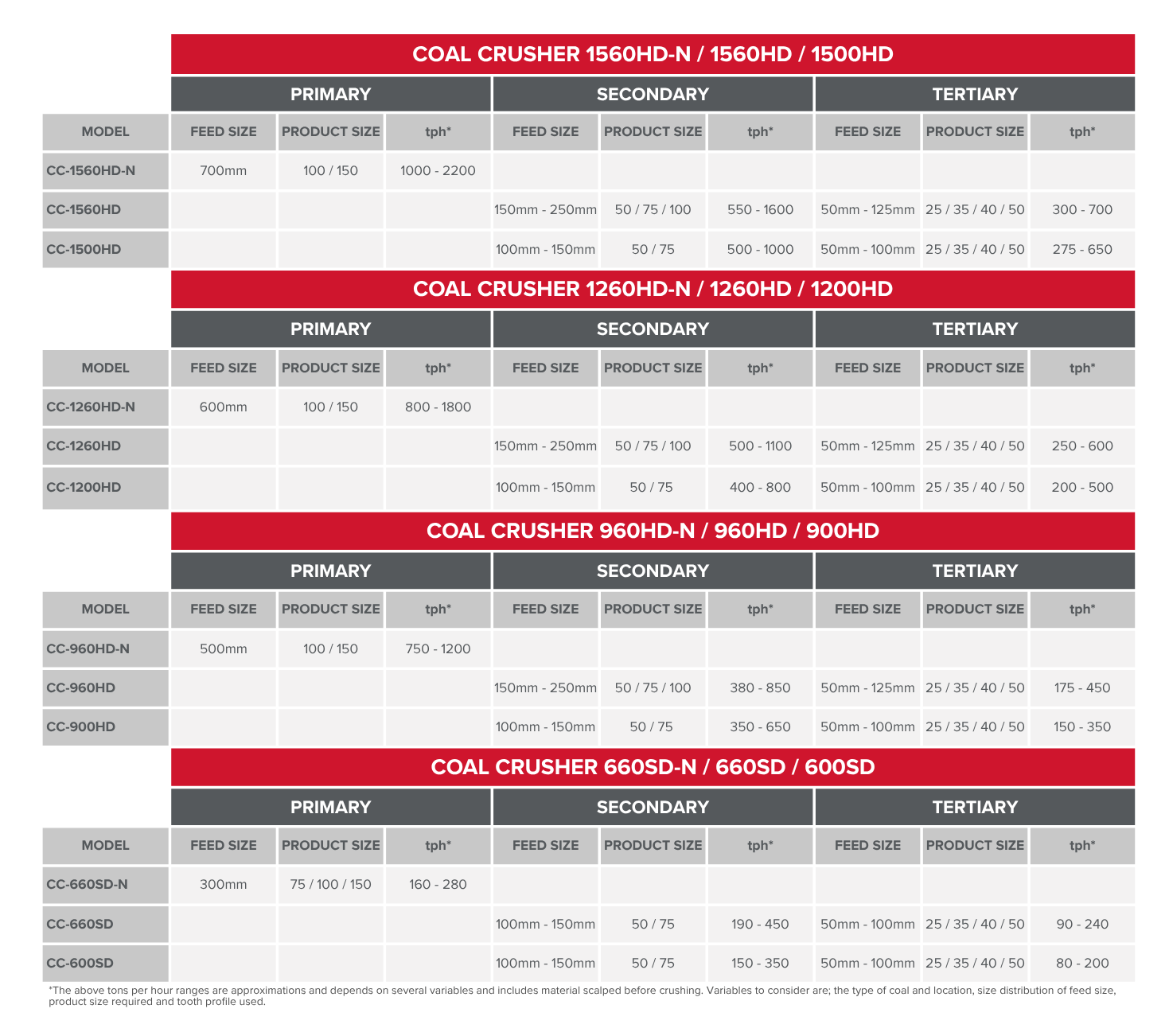

* The above tons per hour ranges are approximations and depends on several variables and includes material scalped before crushing. Variables to consider are; the type of coal and location, size distribution of feed size, product size required and tooth profile used.

CRUSHCO COAL CRUSHER
MODELS COME STANDARD
WITH GEARED MOTOR ASSEMBLY *

• Side by side elevated motor stand and safety guard
• SEW Eurodrive Hellical Geared motors
• Fenner pulleys, V-Belts and locking elements
*can be changed according to client specifications
